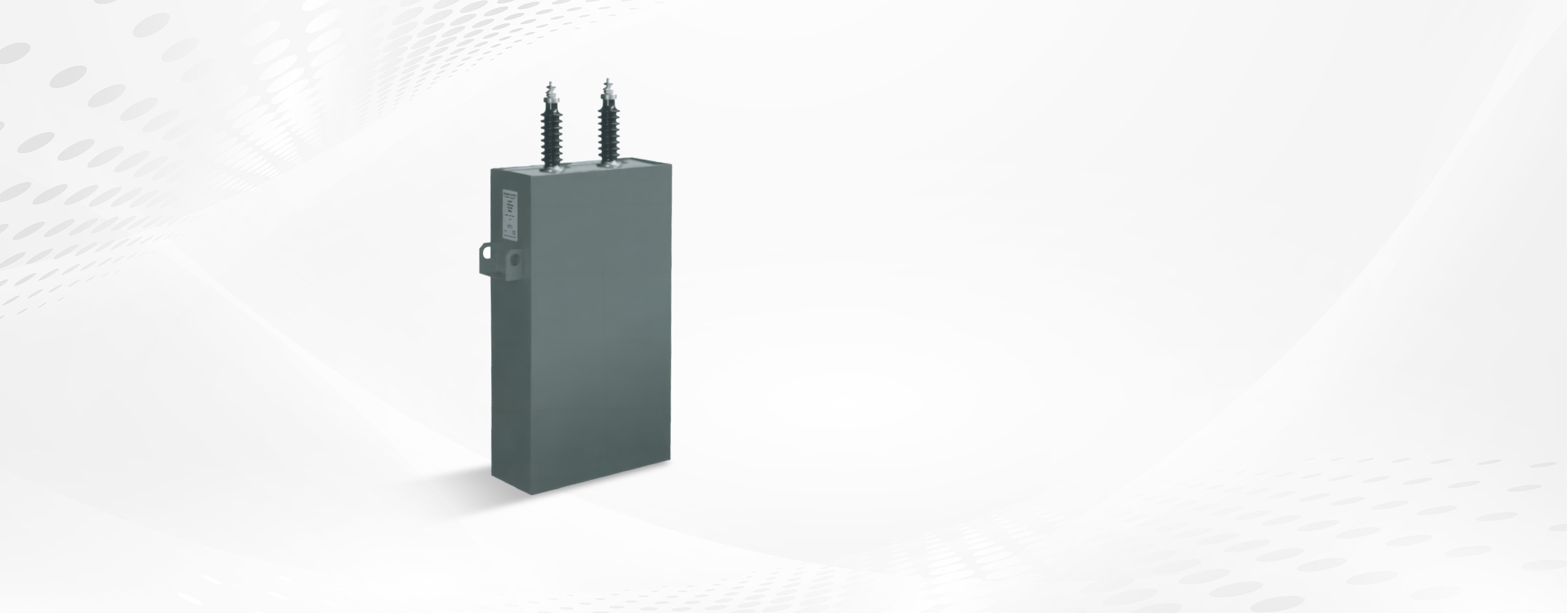

          KLD-MK Series


          High-voltage Power Capacitors




          KLD-MK series high-voltage power capacitors provide reactive power for industrial frequency AC power system, which is used to improve the power factor of the grid, reduce the grid loss, improve the quality of voltage and the efficiency of power generation and power supply equipment.











          PRODUCT OVERVIEW


          High-voltage shunt capacitors are mainly used in 10kV-35W industrial frequency power system for reactive power compensation, improving power factor and adjusting grid voltage. It fully maximizes the efficiency of the equipment and improves the quality of power supply.


          KLD-MK series high-voltage power capacitor is designed with advanced technologies. It chooses polypropylene film as full-film dielectric which is easy to Impregnate and uses PCB-free, safe and environmentally friendly insulating oil as impregnating agent. The case has high specifications of explosion resistance to ensure the safety of use. Special considerations for the power grid make the field strength, material and other aspects are designed to be more adaptive to the grid, better meeting the operating requirements of the power grid.


















          ENVIRONMENTALLY FRIENDLY INSULATING OIL


          As an impregnant, the insulating oil has excellent dielectric properties and stable chemical properties, with no chlorine or chlorinated biphenyls, which can be completely biodegradable.




          No pollution, low freezing point, low viscosity, good low-temperature performance; good absorption to the gas generated by partial discharge, high ignition point, excellent resistance to over-voltage.


























          SPECIAL GAS MIXED IN INSULATING OIL


          Trace water in the dielectric and impregnant is one of the important issues affecting the performance of capacitor partial discharge and this process can further remove the trace water in the oil medium




          Improve the partial discharge performance and electrical resistance to accelerate the movement of the impregnant and facilitate heat dissipation. Reduce the weight of the impregnant medium and thus reduce the overall weight, with better reliability and longer service life.















          RELIABLE WELDING PROCESS




          The case is made of stainless steel plate integrated as a whole and welded by automatic argon-shielded welding machine, with high-strength crimp-type casing welded on the cover.

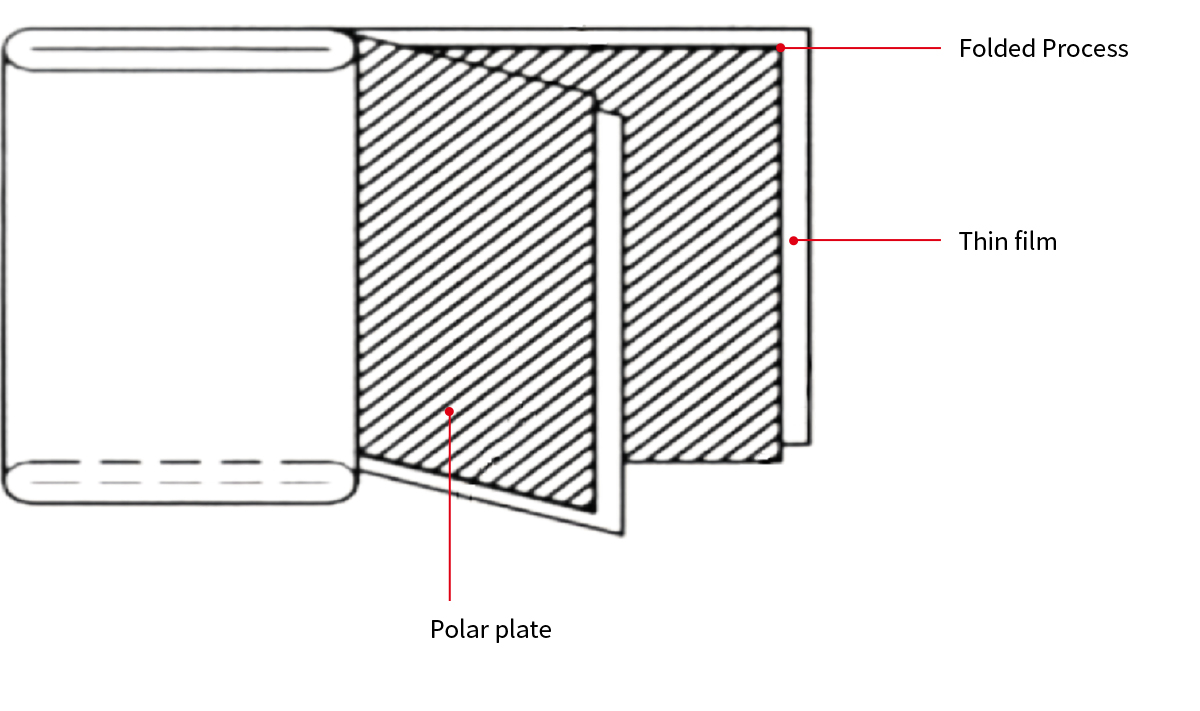

          FOLDED EDGE STRUCTURE OF POLAR PLATE




          The electrode edge of the polar plate adopts the folded edge structure, and the edge is in the shape of circular arc, which improves the field strength distribution and the ratio of the maximum edge field strength to the average field strength is reduced from 6 times to about 2 times. The points of high field strength are eliminated by removing burrs on the edge of the polar plate,  and the electric field strength is higher than the traditional process, which reduces the losses of the capacitor and lowers the probability of partial discharge of the capacitor, and thus improves the reliability of the insulation.

























				Technical Parameters
















					   Rated voltage
					   6~35kV，50Hz/60Hz(others can be customized)




					   Dielectric structure
					   High-quality polypropylene film、environmentally friendly insulating oil




					   Overvoltage range
					   1.1Un long-term, 1.15Un30min, 1.3Un5min, 3Un1min




					   Overcurrent capacity
					   1.5In long-term operation (higher can be customized)




					   Dielectric loss
					   ＜0.2W/kvar




					   Capacitance tolerance
					   -5%~+5%




					   Insulation level
					   3kV/40kV，6kV/60kV，10kV/75kV，20kV/125kV




					    Interpolar withstand voltage
					   10 seconds AC voltage under 2.15Un




					   Service life
					   20 years (under normal use)




					   Temperature rating
					   -40℃~+50℃(or higher)




					   Safety protection
					   Internal fuse (or external fuse) protection




					   Discharge protection
					   Built-in discharge device, ＜50V/5min (higher can be customized)




					   Cooling method
					   Natural cooling (ventilation cooling can be used in the cabinet)




					   Loss angle tangent value
					   ≤0.0002




					   Execution standard
					   IEC 60871/EN60871，GB/T11024，VDE0560,etc

















				Selection table







          Product specifications for single-phase capacitors of 6kV system









					   Specification Model
						Rated capacity（kvar）
						Rated voltage（V）
						Rated current（A）
						Internal protection components




					   KLD-MK-H1-50-6.6/√3kV
						50
						6.6/√3
						13.12
						External fuse




					   KLD-MK-H1-100-6.6/√3kV
						100
						6.6/√3
						26.24
						External fuse




					   KLD-MK-H1-200-6.6/√3kV
						200
						6.6/√3
						52.49
						Internal fuse




					   KLD-MK-H1-334-6.6/√3kV
						334
						6.6/√3
						87.65
						Internal fuse




					   KLD-MK-H1-417-6.6/√3kV
						417
						6.6/√3
						109.43
						Internal fuse




					   KLD-MK-H1-500-6.6/√3kV
						500
						6.6/√3
						131.21
						Internal fuse





					   KLD-MK-H1-50-7.2/√3kV
						50
						7.2/√3
						12.03
						External fuse




					   KLD-MK-H1-100-7.2/√3kV
						100
						7.2/√3
						24.06
						External fuse




					   KLD-MK-H1-200-7.2/√3kV
						200
						7.2/√3
						48.11
						Internal fuse




					   KLD-MK-H1-334-7.2/√3kV
						334
						7.2/√3
						80.35
						Internal fuse




					   KLD-MK-H1-417-7.2/√3kV
						417
						7.2/√3
						100.31
						Internal fuse




					   KLD-MK-H1-500-7.2/√3kV
						500
						7.2/√3
						120.28
						Internal fuse













          Product specifications for single-phase
capacitors of 10kV system









					   Specification Model
						Rated capacity（kvar）
						Rated voltage（V）
						Rated current（A）
						Internal protection components




					   KLD-MK-H1-50-11/√3kV
						50
						11/√3
						7.87
						External fuse




					   KLD-MK-H1-100-11/√3kV
						100
						11/√3
						15.75
						External fuse




					   KLD-MK-H1-200-11/√3kV
						200
						11/√3
						31.49
						Internal fuse




					   KLD-MK-H1-334-11/√3kV
						334
						11/√3
						52.59
						Internal fuse




					   KLD-MK-H1-417-11/√3kV
						417
						11/√3
						65.66
						Internal fuse




					   KLD-MK-H1-500-11/√3kV
						500
						11/√3
						78.73
						Internal fuse





					   KLD-MK-H1-50-12/√3kV
						50
						12/√3
						7.22
						External fuse




					   KLD-MK-H1-100-12/√3kV
						100
						7.2/√3
						14.43
						External fuse




					   KLD-MK-H1-200-12/√3kV
						200
						12/√3
						28.87
						Internal fuse




					   KLD-MK-H1-334-12/√3kV
						334
						12/√3
						48.21
						Internal fuse




					   KLD-MK-H1-417-12/√3kV
						417
						12/√3
						60.19
						Internal fuse




					   KLD-MK-H1-500-12/√3kV
						500
						12/√3
						72.17
						Internal fuse





















				       Technical Parameters



























          •



            Rated voltage：6~35kV，50Hz/60Hz(others can be customized)


            Dielectric structure ：High-quality polypropylene film, environmentally friendly insulating oil


            Overvoltage range：1.1Un long-term, 1.15Un30min, 1.3Un5min, 3Un1min


            Overcurrent capacity：1.5In long-term operation (higher can be customized)


            Dielectric loss：＜0.2W/kvar


            Capacitance tolerance：-5%~+5%


            Insulation level：3kV/40kV，6kV/60kV，10kV/75kV，20kV/125kV


            Interpolar withstand voltage：10 seconds AC voltage under 2.15Un


            Service life：20 years (under normal use)


            Temperature rating：-40℃~+50℃(or higher)


            Safety protection：Internal fuse (or external fuse) protection


            Discharge protection：Built-in discharge device, ＜50V/5min (higher can be customized)


            Cooling method：Natural cooling (ventilation cooling can be used in the cabinet)


            Loss angle tangent value：≤0.0002


            Execution standard：IEC 60871/EN60871，GB/T11024，VDE0560,etc




            •























				       Selection table



























          •



            KLD-MK-H1-50-6.6/√3kV


            Rated capacity（kvar）：50


            Rated voltage（V）：6.6/√3


            Rated current（A）：13.12


            Internal protection components：External fuse



            KLD-MK-H1-100-6.6/√3kV


            Rated capacity（kvar）：100


            Rated voltage（V）：6.6/√3


            Rated current（A）：26.24


            Internal protection components：External fuse



            KLD-MK-H1-200-6.6/√3kV


            Rated capacity（kvar）：200


            Rated voltage（V）：6.6/√3


            Rated current（A）：52.49


            Internal protection components：Internal fuse



            KLD-MK-H1-334-6.6/√3kV


            Rated capacity（kvar）：334


            Rated voltage（V）：6.6/√3


            Rated current（A）：87.65


            Internal protection components：Internal fuse



            KLD-MK-H1-417-6.6/√3kV


            Rated capacity（kvar）：417


            Rated voltage（V）：6.6/√3


            Rated current（A）：109.43


            Internal protection components：Internal fuse



            KLD-MK-H1-500-6.6/√3kV


            Rated capacity（kvar）：500


            Rated voltage（V）：6.6/√3


            Rated current（A）：131.21


            Internal protection components：Internal fuse




            KLD-MK-H1-50-7.2/√3kV


            Rated capacity（kvar）：50


            Rated voltage（V）：7.2/√3


            Rated current（A）：12.03


            Internal protection components：External fuse



            KLD-MK-H1-100-7.2/√3kV


            Rated capacity（kvar）：100


            Rated voltage（V）：7.2/√3


            Rated current（A）：24.06


            Internal protection components：External fuse




            KLD-MK-H1-200-7.2/√3kV


            Rated capacity（kvar）：200


            Rated voltage（V）：7.2/√3


            Rated current（A）：48.11


            Internal protection components：Internal fuse



            KLD-MK-H1-334-7.2/√3kV


            Rated capacity（kvar）：334


            Rated voltage（V）：7.2/√3


            Rated current（A）：80.35


            Internal protection components：Internal fuse



            KLD-MK-H1-417-7.2/√3kV


            Rated capacity（kvar）：417


            Rated voltage（V）：7.2/√3


            Rated current（A）：100.31


            Internal protection components：Internal fuse



            KLD-MK-H1-500-7.2/√3kV


            Rated capacity（kvar）：500


            Rated voltage（V）：7.2/√3


            Rated current（A）：120.28


            Internal protection components：Internal fuse





            •


























          •



            KLD-MK-H1-50-11/√3kV


            Rated capacity（kvar）：50


            Rated voltage（V）：11/√3


            Rated current（A）：7.87


            Internal protection components：External fuse



            KLD-MK-H1-100-11/√3kV


            Rated capacity（kvar）：100


            Rated voltage（V）：11/√3


            Rated current（A）：15.75


            Internal protection components：External fuse



            KLD-MK-H1-200-11/√3kV


            Rated capacity（kvar）：200


            Rated voltage（V）：11/√3


            Rated current（A）：31.49


            Internal protection components：Internal fuse



            KLD-MK-H1-334-11/√3kV


            Rated capacity（kvar）：334


            Rated voltage（V）：11/√3


            Rated current（A）：52.59


            Internal protection components：Internal fuse



            KLD-MK-H1-417-11/√3kV


            Rated capacity（kvar）：417


            Rated voltage（V）：11/√3


            Rated current（A）：65.66


            Internal protection components：Internal fuse



            KLD-MK-H1-500-11/√3kV


            Rated capacity（kvar）：500


            Rated voltage（V）：11/√3


            Rated current（A）：78.73


            Internal protection components：Internal fuse




            KLD-MK-H1-50-12/√3kV


            Rated capacity（kvar）：50


            Rated voltage（V）：12/√3


            Rated current（A）：7.22


            Internal protection components：External fuse



            KLD-MK-H1-100-12/√3kV


            Rated capacity（kvar）：100


            Rated voltage（V）：12/√3


            Rated current（A）：14.43


            Internal protection components：External fuse




            KLD-MK-H1-200-12/√3kV


            Rated capacity（kvar）：200


            Rated voltage（V）：12/√3


            Rated current（A）：28.87


            Internal protection components：Internal fuse



            KLD-MK-H1-334-12/√3kV


            Rated capacity（kvar）：334


            Rated voltage（V）：12/√3


            Rated current（A）：48.21


            Internal protection components：Internal fuse



            KLD-MK-H1-417-12/√3kV


            Rated capacity（kvar）：417


            Rated voltage（V）：12/√3


            Rated current（A）：60.19


            Internal protection components：Internal fuse



            KLD-MK-H1-500-12/√3kV


            Rated capacity（kvar）：500


            Rated voltage（V）：12/√3


            Rated current（A）：72.17


            Internal protection components：Internal fuse





            •
